Number of channels: 12
• DMX Address: Addressable per channel
• Channel Capacity: 0.1A min / 10 or 16 Amp max
• Total dimmer capacity:
n 10A version: 120 Amp / 40 Amp per phase
n 16A version: 192 Amp / 64 Amp per phase
• Dimmer duty cycle: 100%
• Dimmer curves: Normal, Linear, Switched and Square
• Memories: 12
• Sequences: 3
• Areas/zones: 10
• Topset: Selectable per channel
• Supply voltage: 200-255V (3 phase supply)
• Operates on three phase. Can be modified for single phase by
using a special order kit. Contact Zero 88 for more information.
• Supply frequency: 45 to 70Hz auto-sensing and auto-tracking
• Rise Time: 80uS (10A) 120uS (16A)
• Control Input:
n DMX via terminal block accepts DMX 512-1990. Start address
set via front panel controls
n DMX termination may be switched in or out internally
• ChilliNet Support
• RDM Enabled
• Channel outlets: Outlet connections via 6mm² terminal strip
• Case has the following knockouts: Top 2 x Ø50.0mm, 1 x Ø32.0mm,
Bottom 2 x Ø25.5mm
• Channel protection: 10 Amp, type C, neutral disconnect thermal
magnetic circuit breaker per channel, breaking capacity 6000A
• Cooling: Convection
• Dimensions: 1000mm(H), 400mm(W), 155mm(D)
• Operating Temperature: +5ºC to +40ºC
• Humidity: 5% to 95% Non condensing

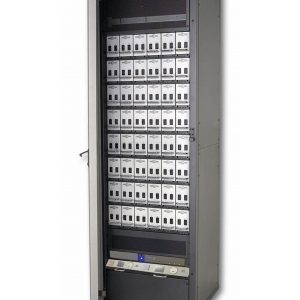

EC21 DIMMING SYSTEM
ision.net architectural control
DMX512 input with patch.
Dual Processor option with full tracking back up available.
Emergency rack panic feature (hard wired for security of local or remote control).
Dual 2.5kw and single 5.0kW IGBT dimmer with 650?s rise time.
Contactor and Fluorescent modules available to control a wide range of loads.
IGBT and Thyristor modules may be mixed in the same rack.
48 module racks with lockable easy view steel doors?
Plug-in modular dimmer system.?
